Product Description

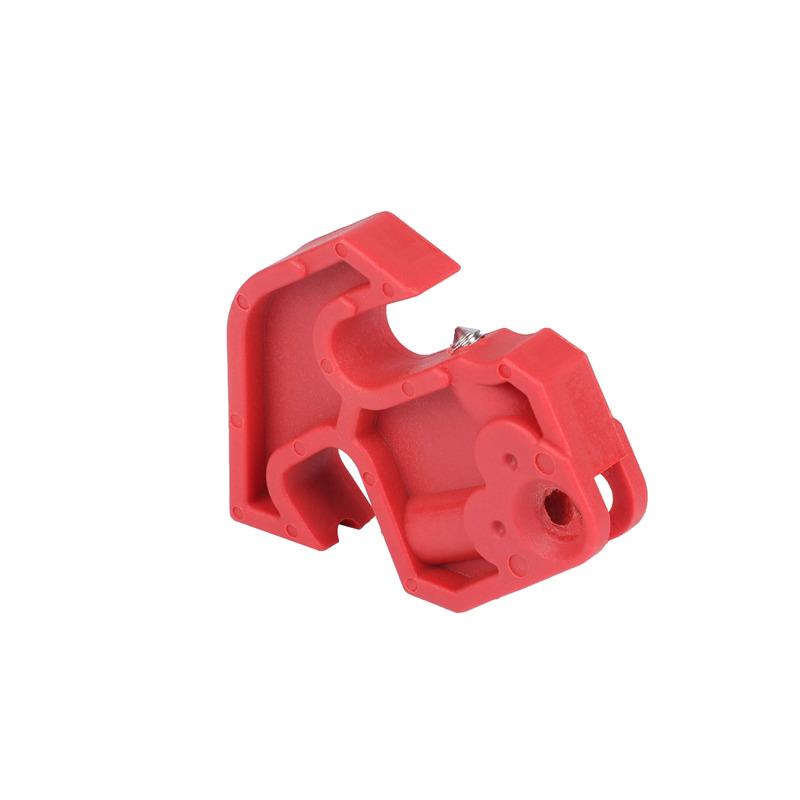

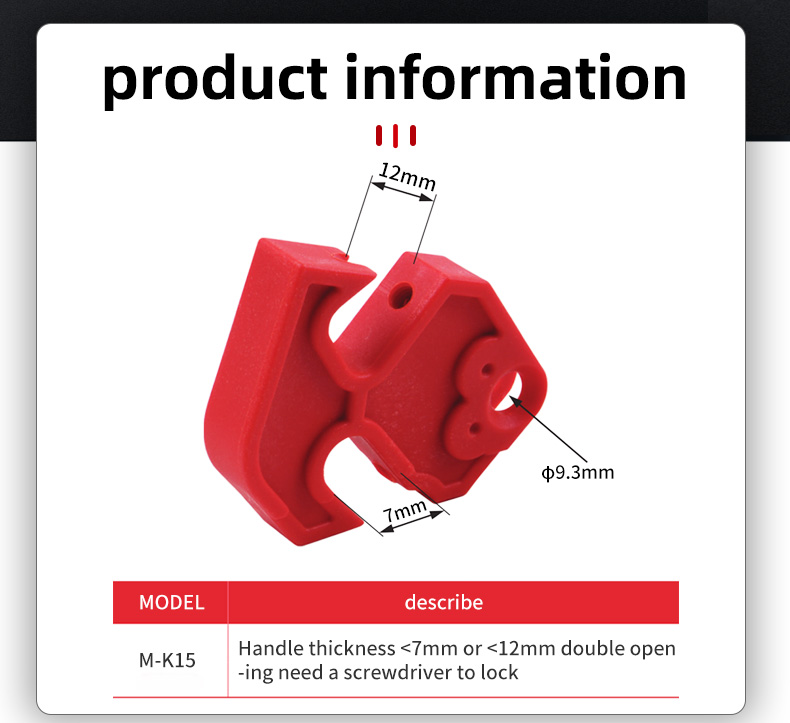

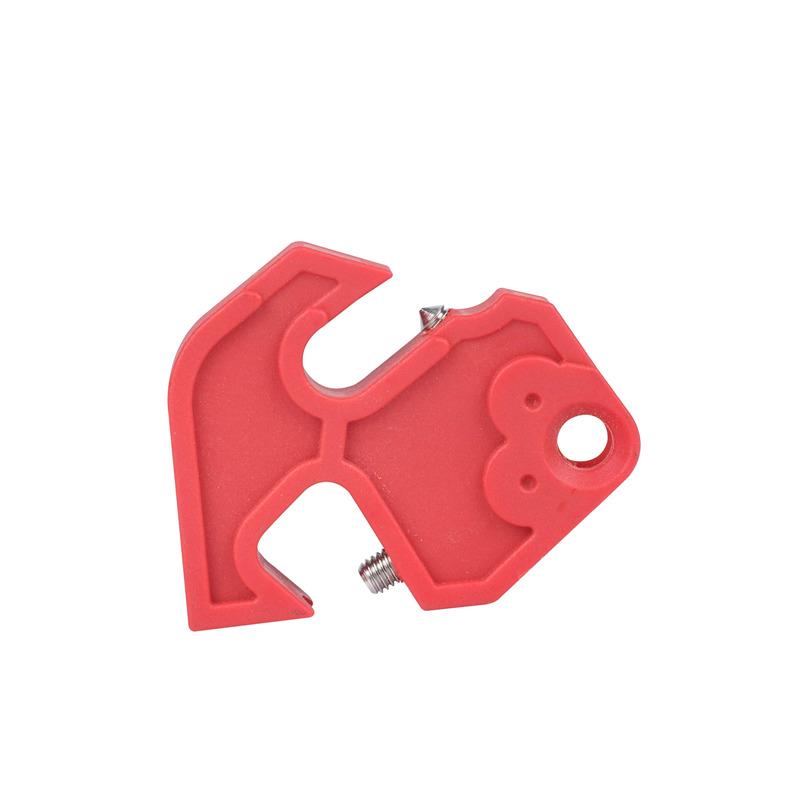

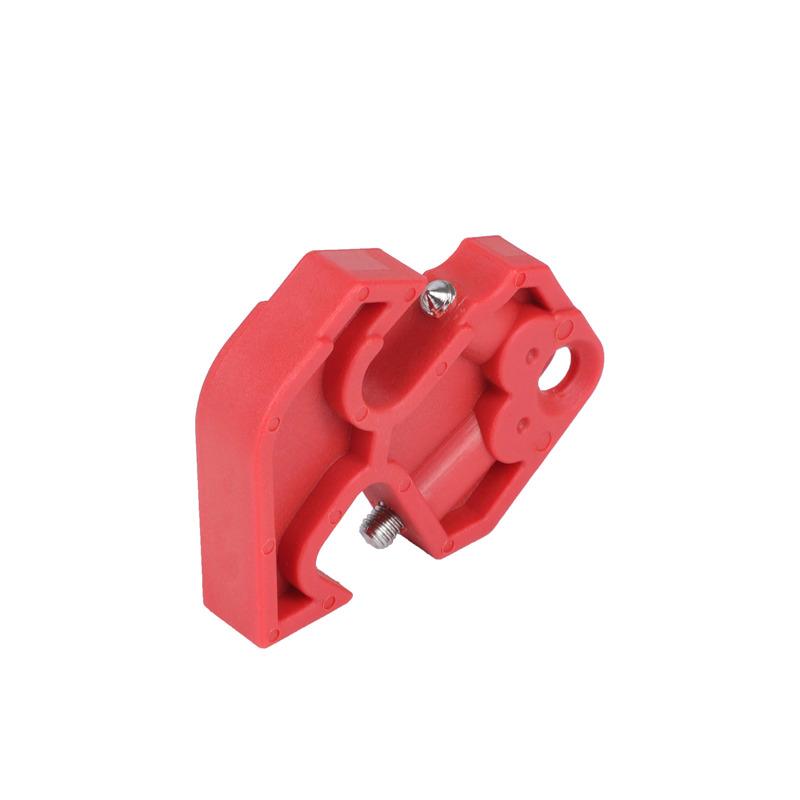

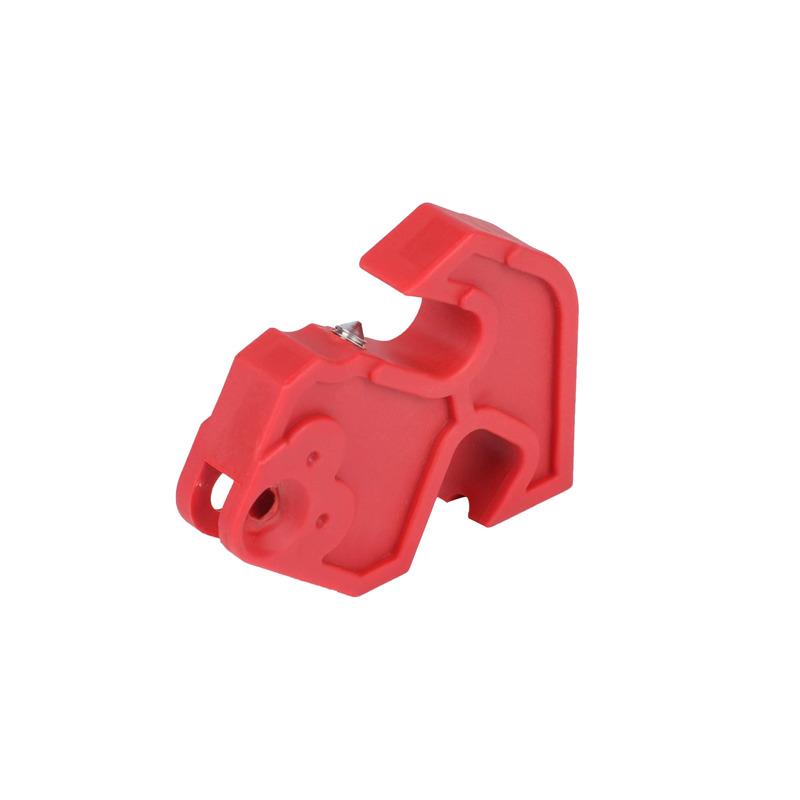

Suitable for min-size circuit breaker handle width≤7mm, and middle size circuit breaker handle width≤12mm.Multi-Functional Circuit Breaker Lockout
a) Made from engineering plastic strengthened nylon PA.
b) Fits on breaker toggles and can be tightened with a screw driver.
c) With two toggles can be applied on different sizes breakers.
d) Can take a padlock with shackle diameter up to 9.3mm.

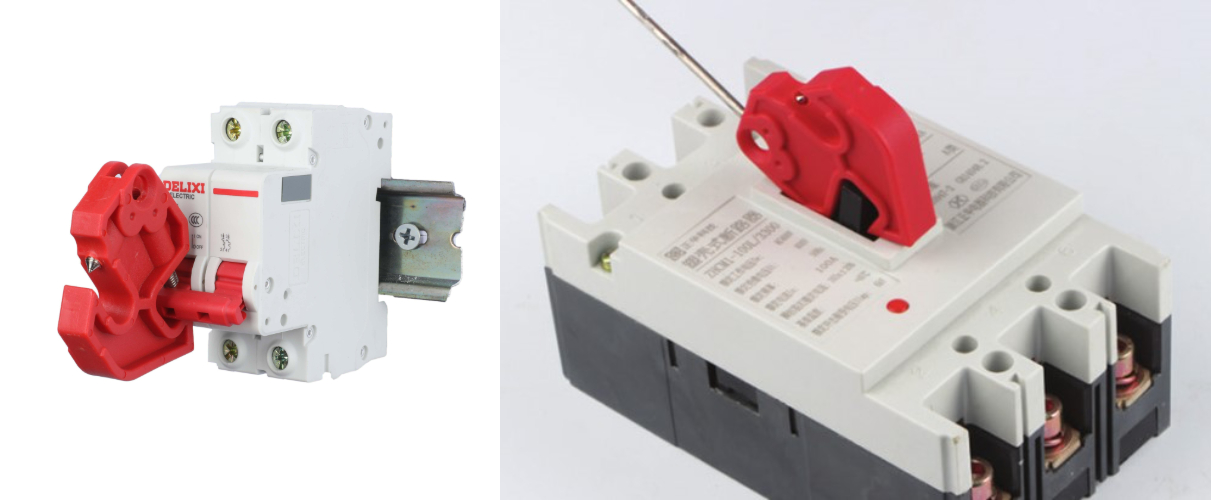

e) This is designed to apply for most MCB and main switches.
f) It has extra length clearance on the toggle side,which can be used on breakers with extra long toggles,as well as the standard size,thicker main switches are accommodates on the opposite side.
g) Works with all safety padlocks and hasps.Fits on breakers toggle and can be tightened using screwdriver.
|
Model |
Product |
Material |
Description |
|
M-K14 |
|
PA |
Suitable for handle thickness ＜26mm |
|
M-K15 |
|
PA |
Suitable for handle thickness ＜7mm |
|
M-K16 |
|
PA |
Suitable for handle which have holes on both sides. |
|
M-K19 |
|
ABS and PA |
The rod length 190mm,Suitable for irregular shapes switches. |
|
M-K20 |
|
PA |
Suitable for handle thickness from 7-15mm |
|
M-K21 |
|
Nylon |
Suitable for handle thickness ＜9mm. |
|
M-K23 |
|
Nylon PA |
The 4 holes can be locked to accept the safety padlock with a shackle diameter ≤8.6mm |
|
M-K24 |
|
Nylon |
Suitable for various large molded case circuit breakers (handle thickness ≤20mm |
|
M-K25 |
|
Nylon |
Suitable for handle thickness ≤7mm. |
|
M-K29 |
|
PA |
Pin out,suitable for hole distance 10-14mm. |
|
M-K30 |
|
PA |
Suitable for handle thickness ≤8mm. |
|
Place of Origin |
Zhejiang,China |
|
Brand Name |
QVAND |
|
Model Number |
M-K15 |
|
Material |
PA Nylon |
|
Color |
Red |
|
Service |
OEM Support |
