Product Description

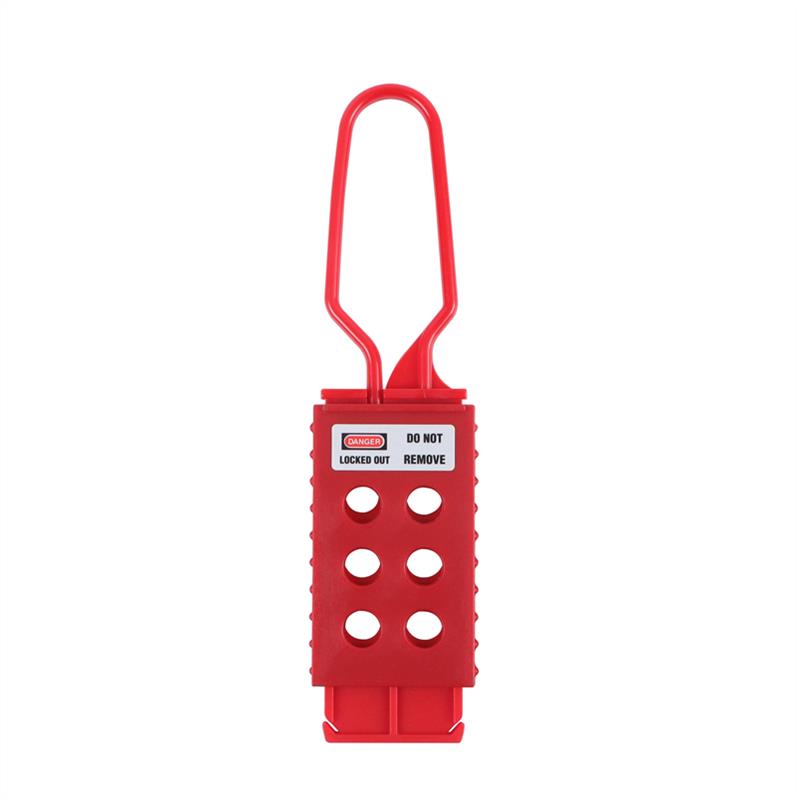

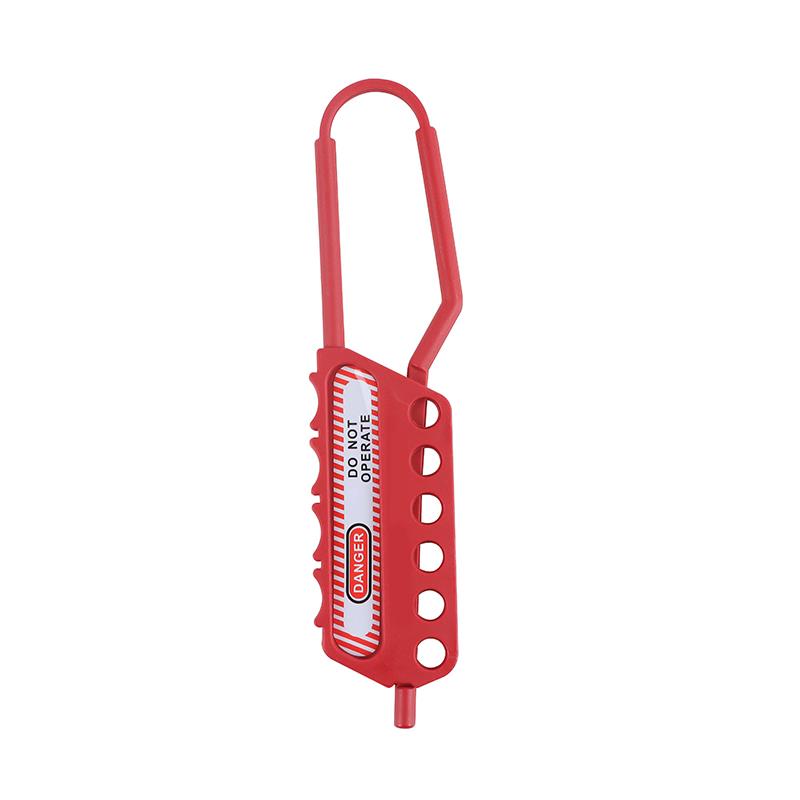

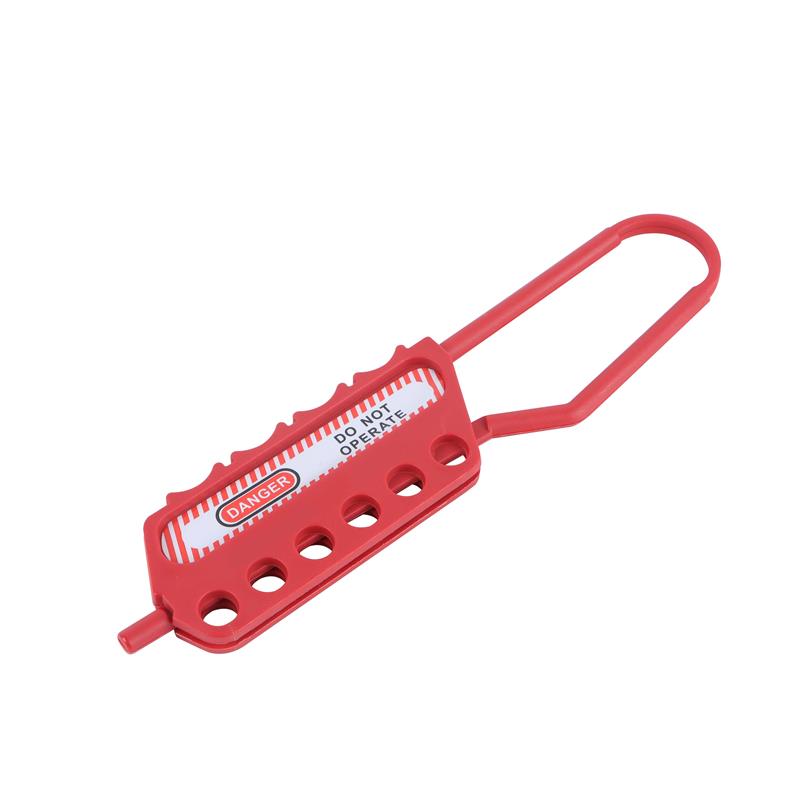

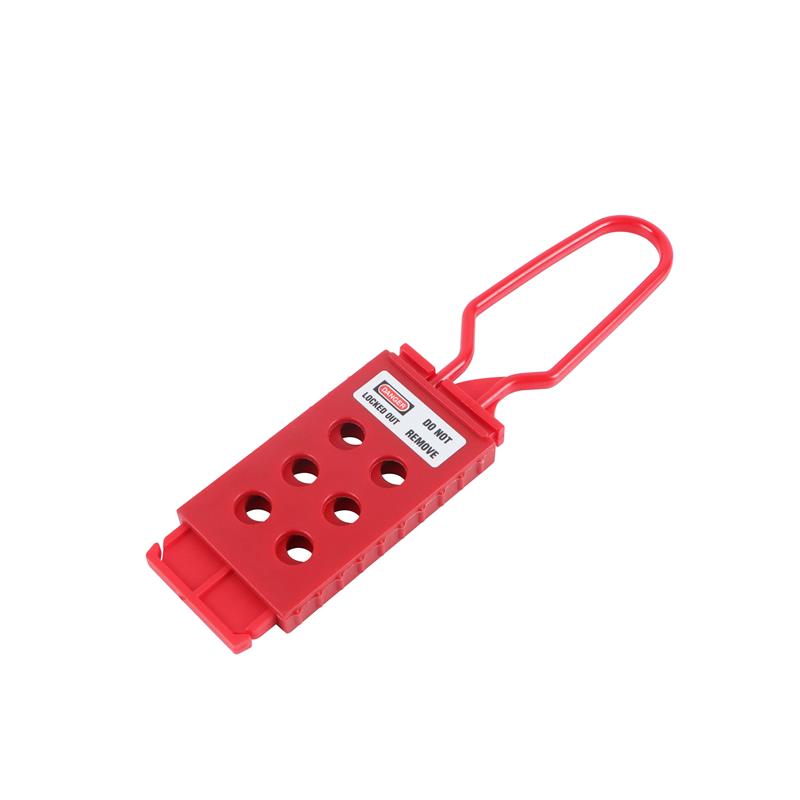

6 Holes Non-conductive HASP Lockout
a) Made from durable nylon.
b) Non-conductive body, applied to lock out electric power isolations with high requirements on corrosive or explosion-proof places.
c) Allow multiple padlocks to be used when isolating one energy source.
d) Usage: pull and press the side.
e) Lightweight and compliance with all OSHA requirements.
f) Red available, and other colors can be OEM.
g) Warning sign stickers can be customized.

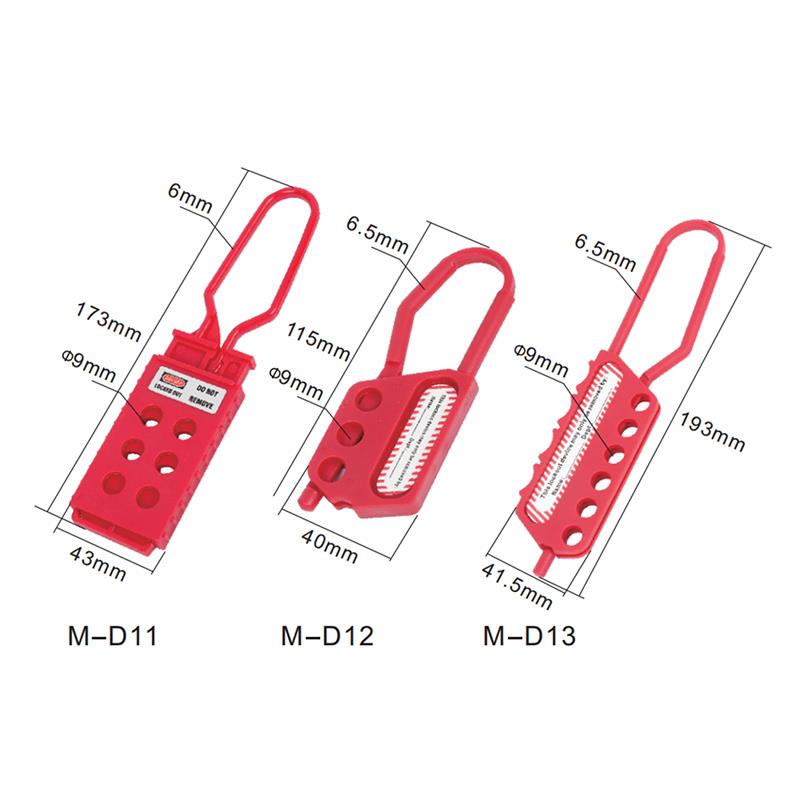

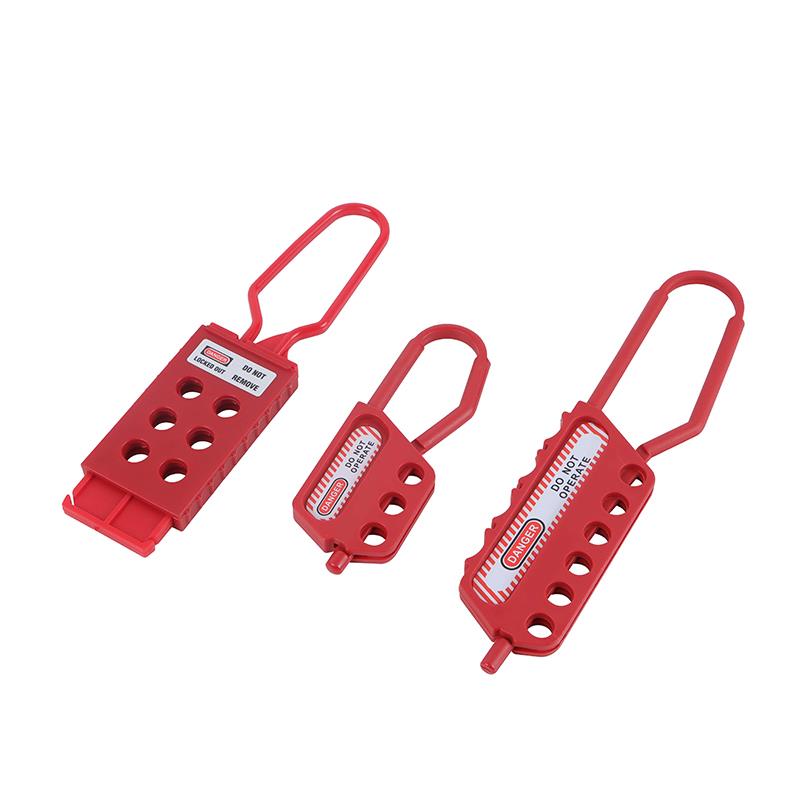

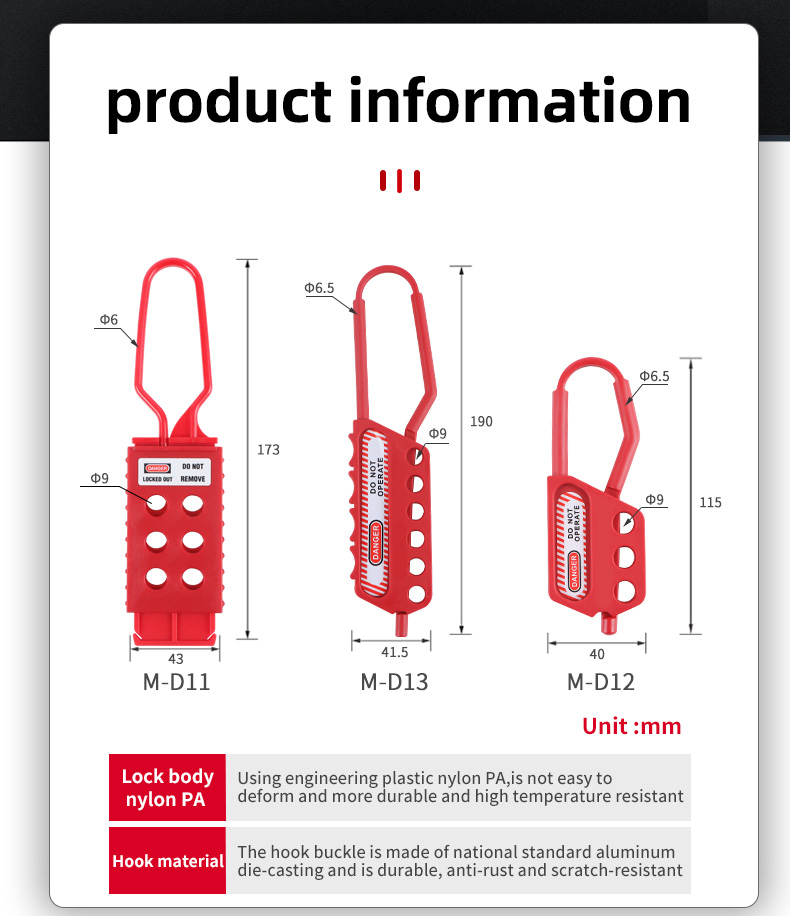

HASP Lockout M-D11 /12/13 specification
Model |
Holes |
Hole diameter |
Material |
Dimension |
M-D11 |
6 holes |
9mm |
PA Nylon |
173x43x6mm |

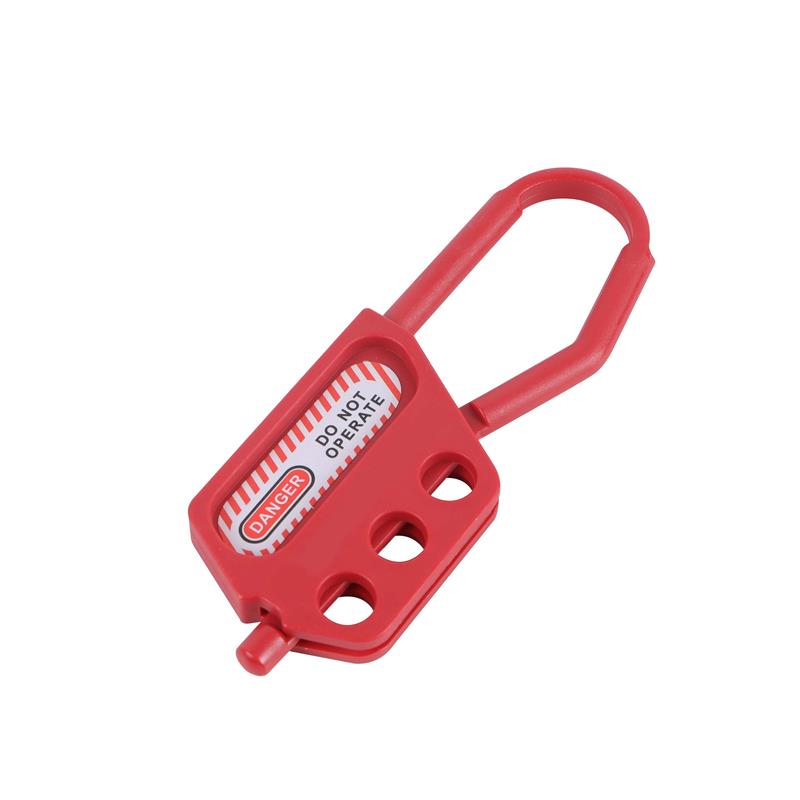

M-D12 |

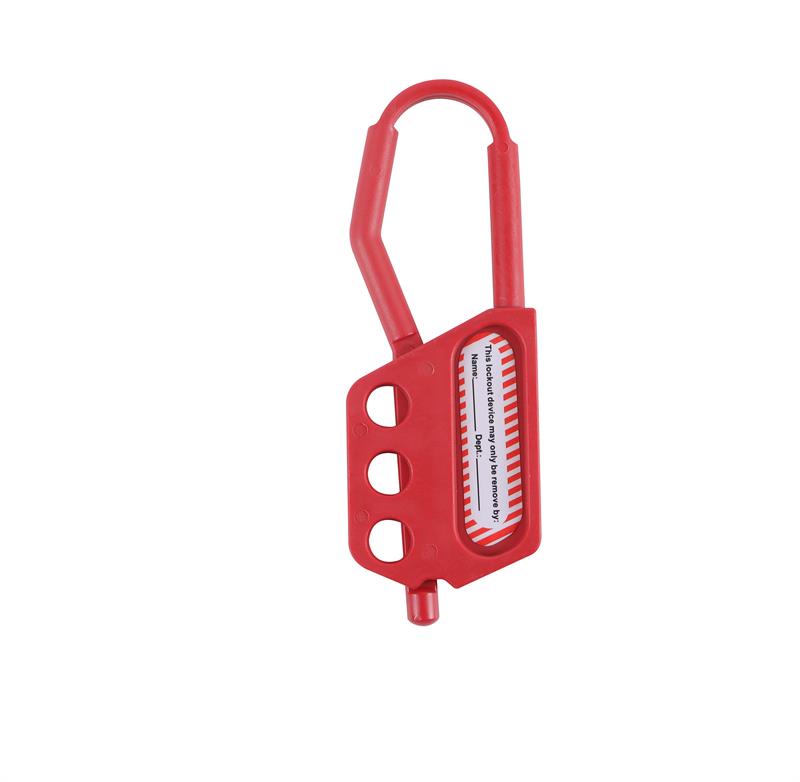

3 holes |
9mm |
PA Nylon |
115x40x6mm |
M-D13 |
6 holes |
9mm |
PA Nylon |
193x41.5x6mm |
1. LOCK BODY MATERIAL
The lock body is made of strength and corrosion resistance engineering plastic PA nylon.
Temperature difference resistance (-20℃~120℃),suitable for all kinds of extreme operating conditions.

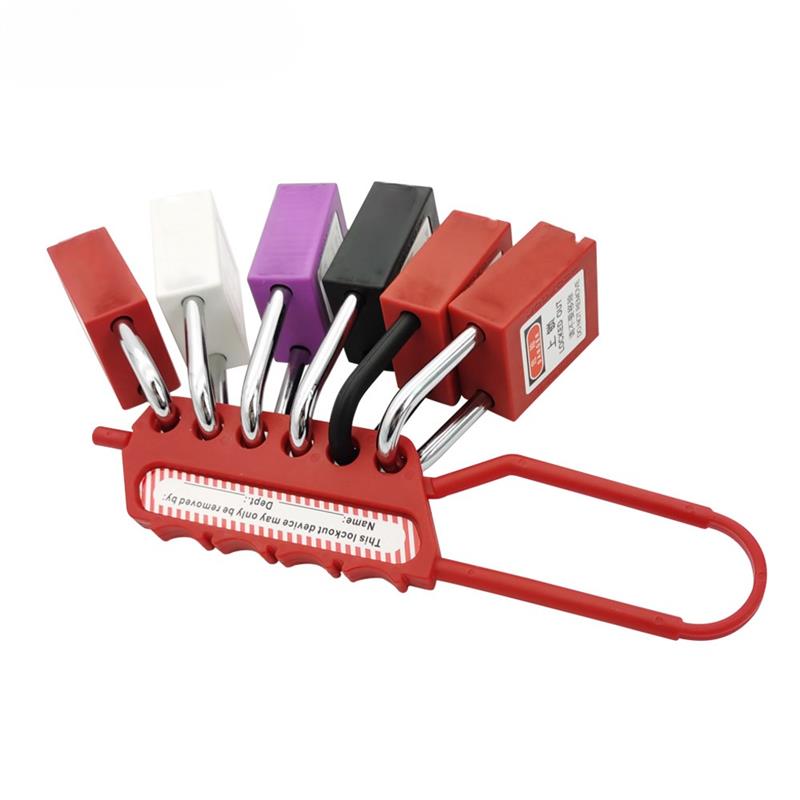

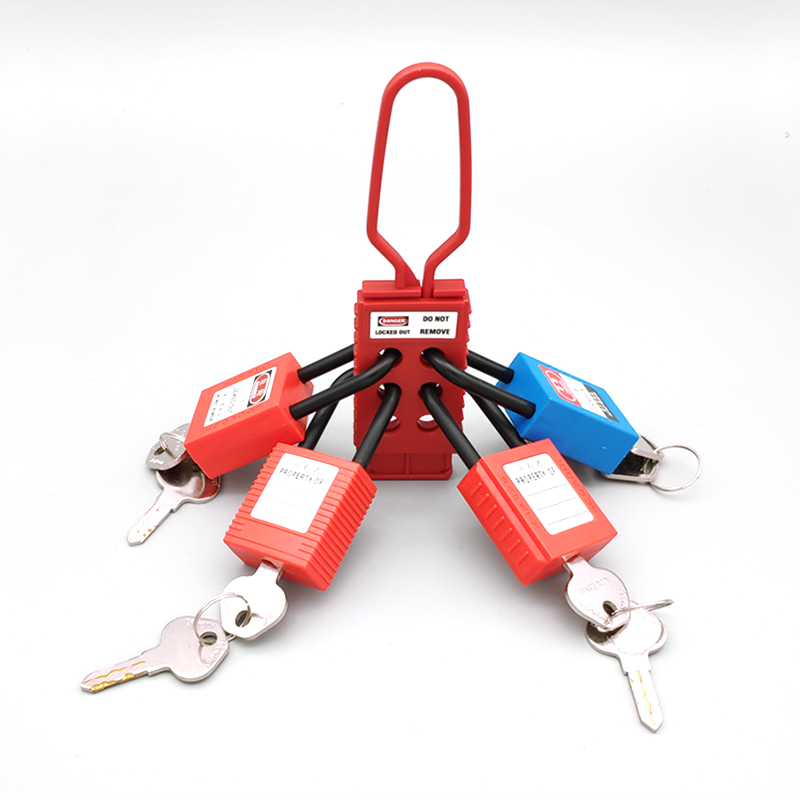

2. MULTIPLE PEOPLE MANAGEMENT
The 3 or 6 holes design allow multiple workers to lock it at the same locking point. Safety hasps prevent equipment from operating during maintenance or adjustment.The control can not be opened until the padlock of the last worker is removed from the hasp.
3. INSTALL AND USE AT ANY TIME.

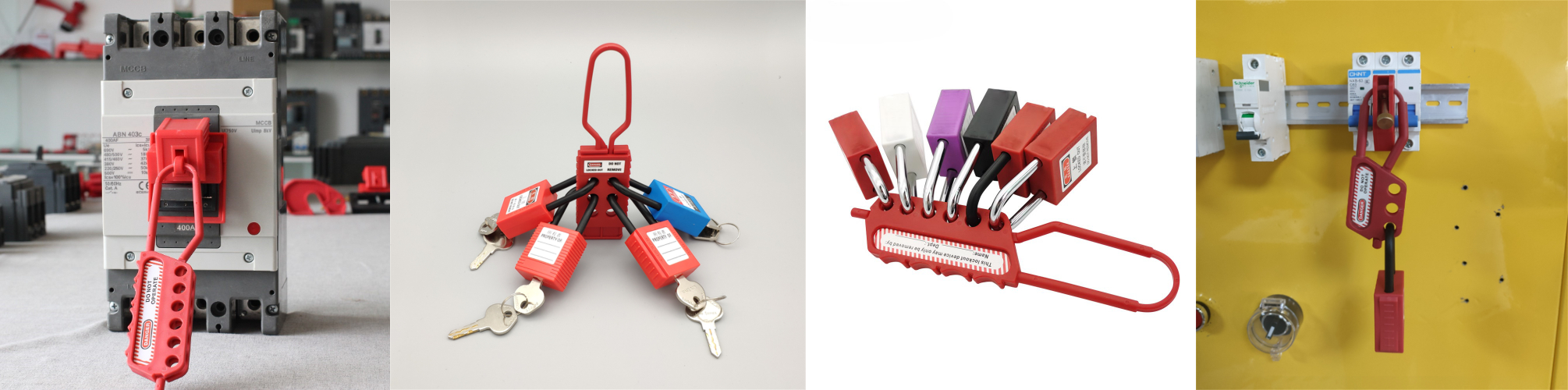

The safety lockout hasp is recommended to be used together with the safety padlock and the safety tag to achieve the purpose of energy isolation.
Place of Origin |
Zhejiang,China |
Brand Name |
QVAND |
Model Number |
M-D11/12/13 |
Material |
PA66 Nylon |
Color |
Red |
Lock Hole Size |
9mm |
Service |
OEM Support |
